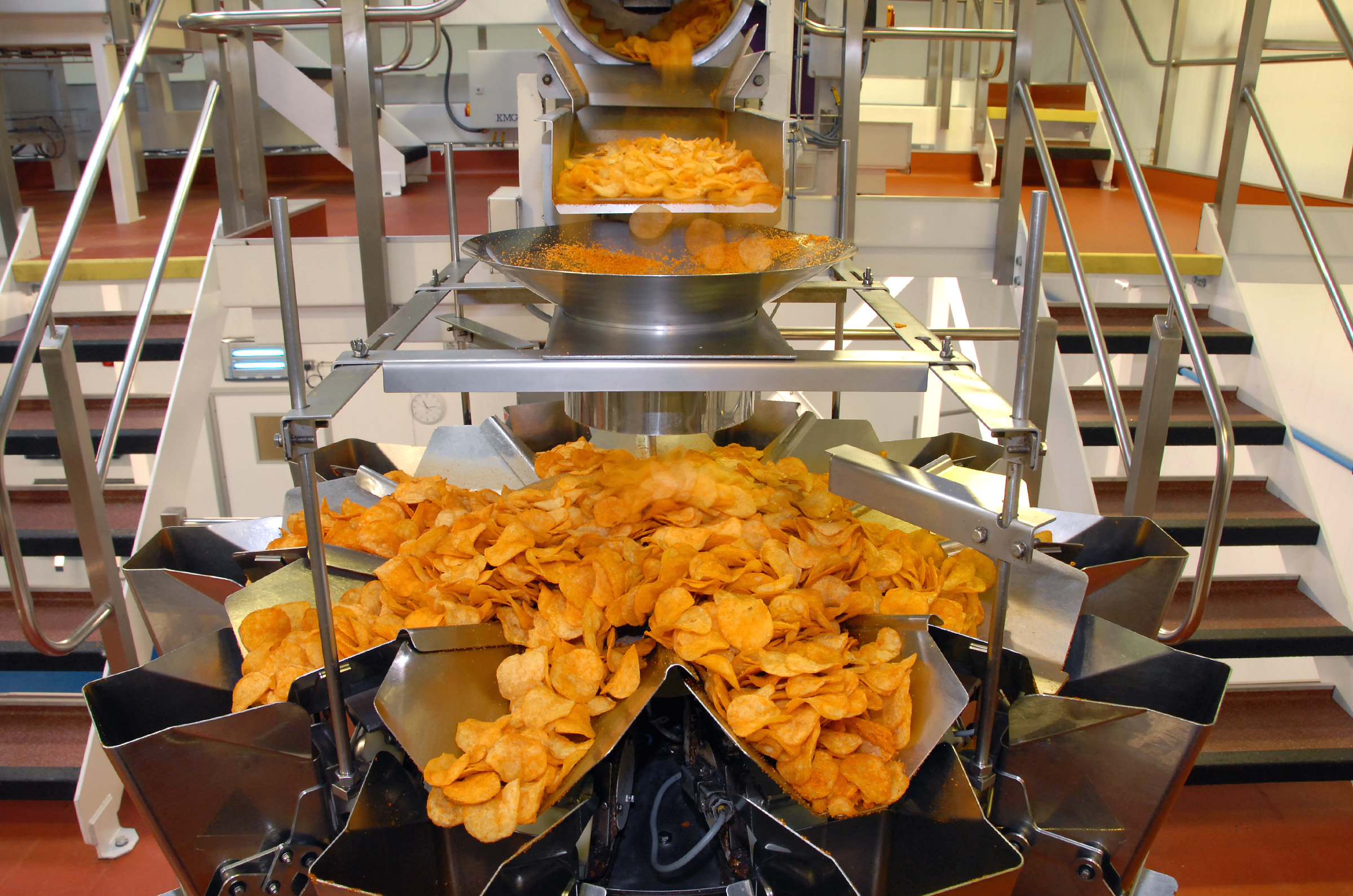

Multi Head Weigher with High Speed Pouch packing Machine (Collar Type)
Technical
|
Packing Range |
10gm to 1kg |
|
Filling System |
(Multi Head Weigher) 10 Head weigh Filler Filling |
|
Filling Accuracy |
- / + 0.5% |
|
Type of Sealing |
Center Seal |
|
Packing Material |
All Kinds of Granule Products like Kurkure, Frymes, Chips, Grains Etc. |
|
Film Size |
100mm-450mm width x 100mm-200mm length |
|
Film Roll Type |
Laminated Film in Roll Supported Film E.g. Polyster Roll |
|
Speed |
45 to 60 bag/min (Varies with the nature of product & filling range) |
|
Power |
3kw 230v / AC / Single Phase / 50hz |
|
Wooden Case |
1300mm x 1000mm x 1000mm (H x W x L) |
|
Machine Size |
72" x 96" x 126" |
|
Weight |
1450kg (Approx) |
|
Compressed Air |
6 CFM @ 6 bar |
|
Optional |
Batch Coding Device |
