Mineral Water Bottle Rinsing, Filling & Capping Machine

The plastic bottles are fed into the rotary rinser,filler capper by means of an input feed air conveyor.
A star wheel then transfers the bottle to neck holding gripper of the rinsing station.
The rinsing robot indexes the bottle 180°and activates the rinsing value.Bottles after being rinsed are automatically transferred by a star wheel to the filling station.
In the filling station the bottles are picked up by the neck, allocated individual filling values and sealed by rubber nozzle. The filled container is ready for sealing and the faster the better.
The state-of-art filling valve is so precise and accurate it gives even filling in all bottles.The filled bottles are then transferred to the capping station via a star wheel.The bottles automatically move for the capping stage where the caps release from the sorter on to the bottles.The caps are sealed automatically using special capping hands.

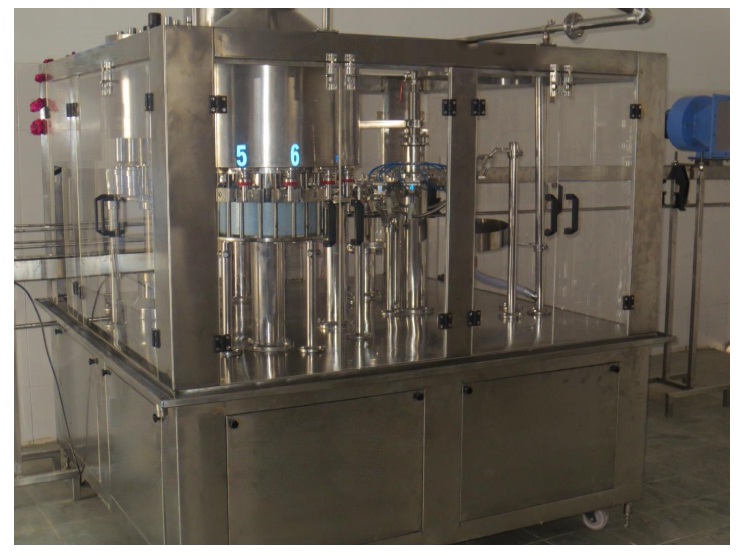

The entire system is enclosed in a stainless steel/glass outer casing.
After the capping stage the bottle are automatically ejected out to the out feed conveyor.
The whole equipment is sleek and is capable of bottling various sizes of PET bottles ranging from 250 ml to 2 ltrs.
